- SPECIFICATIONS
- Sampling Frequency
- 44.1 kHz
- AD/DA Conversion
- 24 bits
- Processing
- 32-bit floating point
- Modes
- 12 modes
LEAD, PAD, STRING, BELL, ORGAN, BASS, DUAL, SWEEP, NOISE, SFX, SEQ, ARPEGGIO - Memory
- 128
- Nominal Input Level
- INPUT, RETURN: -10 dBu
- Maximum Input Level
- INPUT, RETURN: +7 dBu
- Input Impedance
- INPUT, RETURN: 2 M ohms
- Nominal Output Level
- OUTPUT, SEND: -10 dBu
- Maximum Output Level
- OUTPUT, SEND: +7 dBu
- Output Impedance
- OUTPUT, SEND: 1 k ohm
- Recommended Load Impedance
- OUTPUT, SEND: 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- ON/OFF switch, MEMORY/CTL 1 switch
TYPE knob, MEMORY knob, 1 knob, 2 knob, 3 knob, D. LEVEL knob, E. LEVEL knob, VARIATION knob
MENU button, EXIT button - Display
- Graphic LCD (132 x 32 dots, backlit LCD)
- Connectors
- INPUT jack, OUTPUT jack, SEND jack, RETURN jack: 1/4-inch phone type
CTL 2, 3/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only) - Power Supply
- Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw
- 230 mA
- Expected Battery Life Under Continuous Use
- Alkaline: Approx. 5 Hours
* These figures will vary depending on the actual conditions of use. - Accessories
- Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4 - Options (sold separately)
- AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 - SIZE AND WEIGHT
- Width
- 101 mm
4 inches - Depth
- 138 mm
5-7/16 inches - Height
- 63 mm
2-1/2 inches - Height (including rubber foot)
- 65 mm
2-9/16 inches - Weight
- 630 g
1 lb 7 oz - Weight (including battery)
- 700 g
1 lb 9 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
SKU:SY-200
- Advanced BOSS polyphonic guitar synth technology in a streamlined 200 series pedal
- 12 analog-style synth categories with many variations in each (171 sounds total)
- Three adjustable parameters for customizing sounds
- 128 memories for saving and recalling sounds
- Fast sound creation with hands-on controls and large display
Fuld beskrivelse
A World of Synth Tones at Your Feet
Offering a universe of rich, analog-inspired polyphonic tones in a small footprint, the SY-200 makes it simple to weave BOSS’s expressive guitar and bass synth technology into all of your musical journeys. Building on the fun, instant-gratification experience of the acclaimed SY-1, this blue inspiration machine features an expanded sound set, more tone-shaping possibilities, and 128 memories for storing your sonic creations. Two onboard footswitches provide deep real-time performance control, and you can take things even further with external footswitches, an expression pedal, and MIDI.
- Advanced BOSS polyphonic guitar synth technology in a streamlined 200 series pedal
- 12 analog-style synth categories with many variations in each (171 sounds total)
- Three adjustable parameters for customizing sounds
- 128 memories for saving and recalling sounds
- Fast sound creation with hands-on controls and large display
- No special pickup required—play rich, dynamic synth tones with any guitar or bass
- Latency-free performance for unrestricted musical expression
- Assignable Memory/CTL 1 switch for memory change, hold, pitch control, and more
- Blend synth and normal guitar sounds with independent level controls
- Parallel send/return loop for easy integration with other pedals on your board
- Selectable modes for globally optimizing the synth engine for guitar or bass
- Supports extended control with up to two external footswitches or an expression pedal

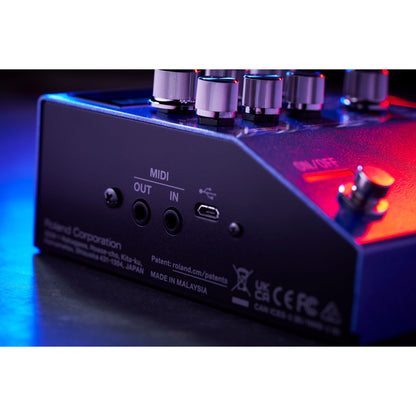

- Full MIDI I/O provided with space-saving 3.5 mm TRS jacks (connection cables available separately)
- Micro USB jack for firmware updates
- Runs on PSA-series AC adaptor or three AA-size batteries
A Massive Library of Expressive Synth Tones
The SY-200 transforms your guitar or bass into a versatile analog-flavored synth, ready to infuse your music with dynamic, compelling, and evocative new voices. This streamlined stomp gives you 171 total sounds organized in 12 intuitive categories, along with adjustable parameters for customizing the tone and response. And with 128 memory locations, you’re able to store your favorite sounds and instantly recall them while performing.
