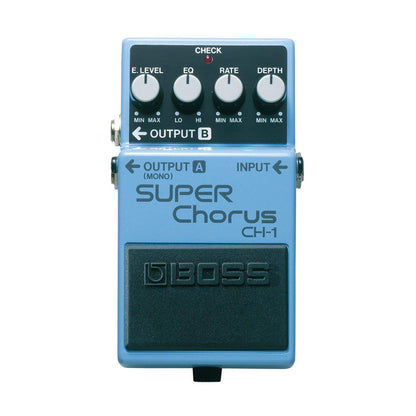

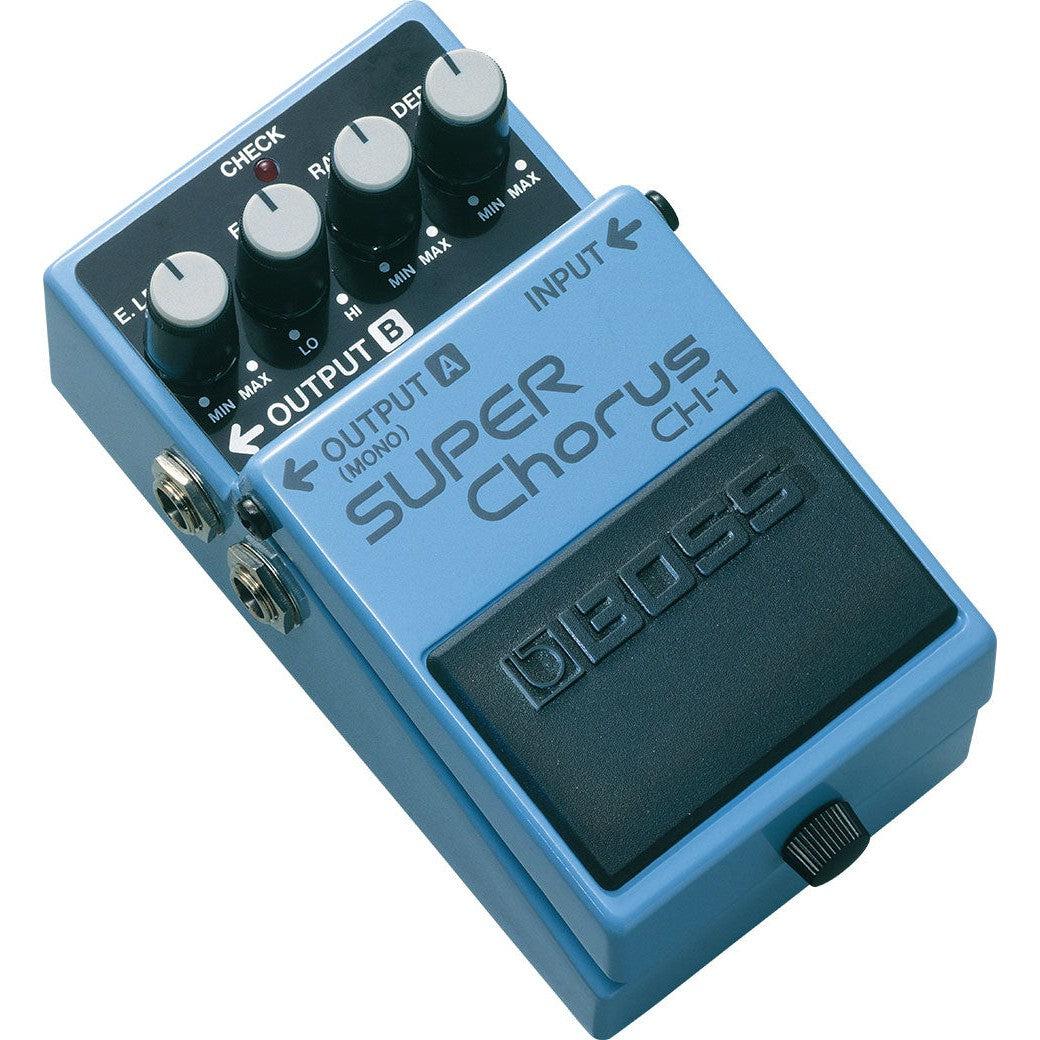

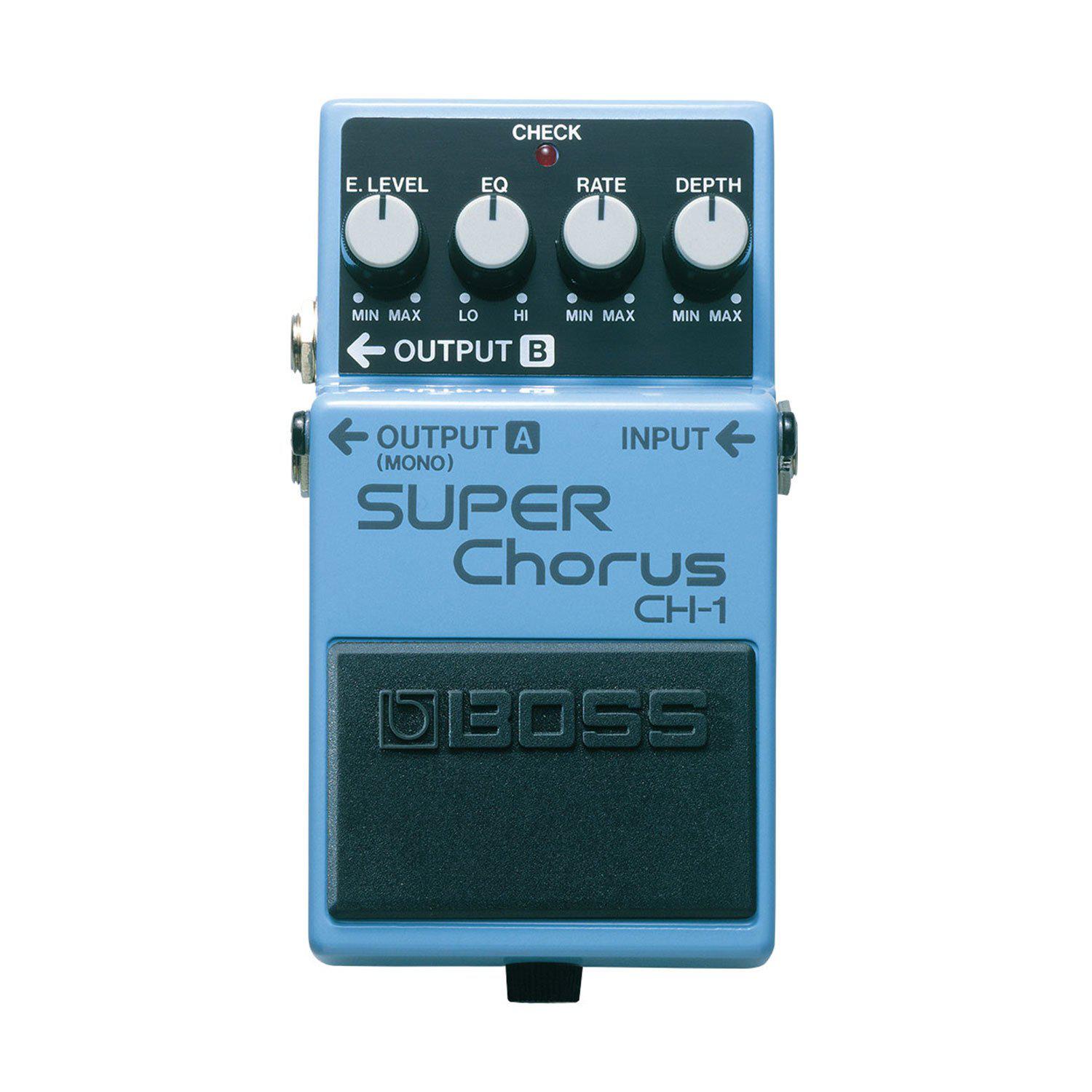

CH-1 SUPER Chorus leverer en ren choruslyd med krystalklar diskant og en unik stereolyd, som vandrer mellem højre og venstre kanal.

Highlights

• Klassisk BOSS choruspedal med ren, glitrende lyd velegnet til guitar og keyboards
• Drejeknapperne Effect Level, EQ, Rate og Depth giver præcis kontrol over lyden
• Mono-indgang, samt stereo-udgang til brug med to forstærkere

Fuld beskrivelse

En unik stereo choruspedal

CH-1 SUPER Chorus leverer en ren choruslyd med krystalklar diskant og en unik stereolyd, som vandrer mellem højre og venstre kanal. Den indbyggede EQ funktion giver mulighed for at regulere klangen.

Specifikationer

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
DEPTH knob
RATE knob
EQ knob
E.LEVEL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61)AC adaptor (PSA series: sold separately)
Current Draw 55 mA
Expected battery life under continuous use Alkaline: Approx. 6 hours*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately) AC adaptor: PSA series

SIZE AND WEIGHT
Width 73 mm2-7/8 inches
Depth 129 mm5-1/8 inches
Height 59 mm2-3/8 inches
Weight (including battery) 420 g15 oz
